EI84 - Encapsulated Transformer - Vertical Mount - 120VA 50/60Hz

Our comprehensive selection of products also includes a series of EI84 safety transformers for pcb or vertical mounting.

High-quality encapsulated vacuum potted transformers. Output power from 85VA.

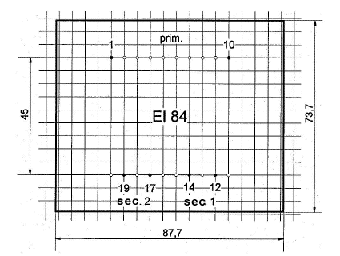

Print Layout - EI84 Transformer   EI84 - Encapsulated Transformer - Vertical Mount - 120VA  50/60Hz   EI84 - Encapsulated Transformer - Vertical Mount - 120VA  50/60Hz

View from PCB   Solder pins 0.8 mm Ø   - Grid 5 mm


Type Max. Ambient Temperature Pin Connections Pin Connections * Stack
Height
mm
Case
Height
(H) mm
Weight
g
 EI84-13A/7.../... 70°C/B 6...40V - 85.00 VA 2x6...20V - 2x42.5 VA nkf 29.5 63.4 1,680
 EI84-13F/7.../... 70°C/B 6...40V - 85.00 VA 2x6...20V - 2x42.5 VA bkf 29.5 63.4 1,680
 EI84-13A/4.../... 40°C/B 6...40V - 100.00 VA 2x6...20V - 2x50 VA nkf 29.5 63.4 1,680
 EI84-13F/4.../... 40°C/B 6...40V - 100.00 VA 2x6...20V - 2x50 VA bkf 29.5 63.4 1,680
 EI84-33A/7.../... 70°C/B 6...40V - 100.00 VA 2x6...20V - 2x50 VA nkf 43.5 76.6 2,220
 EI84-33F/7.../... 70°C/B 6...40V - 100.00 VA 2x6...20V - 2x50 VA bkf 43.5 76.6 2,220
 EI84-33A/4.../... 40°C/B 6...40V - 120.00 VA 2x6...20V - 2x60 VA nkf 43.5 76.6 2,220
 EI84-33F/4.../... 40°C/B 6...40V - 120.00 VA 2x6...20V - 2x60 VA bkf 43.5 76.6 2,220

  • Approved according to EN 60742
  • Vacuum cast
  • Two chamber coil
  • Safety class II
  • Protective system IP 00
  • Conditionally short-circuit proof (*bkf) through built-in temperature fuse,
    or not short-circuits proof (*nkf) but protected by external fuse on primary or secondary
Note: If using the conditionally short-circuit proof transformer type (*bkf), no strip conductors may be guided between the primary connecting pins on the component insertion side, because in this area there is an unprotected live soldering terminal.


Variants available on request
