EP7-EP10-EP13-EP17-EP20 Drosler og Transformatorer
SMP DROSLER OG TRANSFORMATORER MED "EP-KERNER"
|

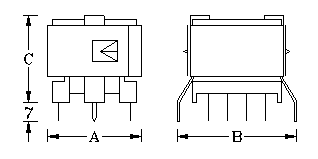

TYPE |
KERNE |
A (mm) |
B (mm) |
C (mm) |

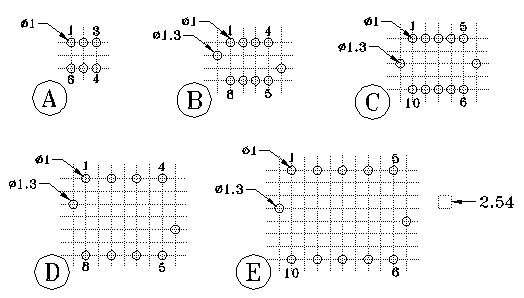

PRINT LAYOUT |
|
680 |
EP7 |
7,5 |
10,0 |
10,0 |
|
|
681 |
EP10 |
12,0 |
14,0 |
12,5 |
|
|
682 |
EP13 |
15,0 |
14,0 |
14,0 |
|
|
683 |
EP17 |
20,0 |
22,0 |
16,0 |
|
|
684 |
EP20 |
23,0 |
27,5 |
20,5 |
|
Varianter fremstilles efter ønske
