AEP1100 -Conexant Chipsets


Features

  • complies with ANSI and ETSI requirements
  • matched to Conexant´s 328R58-001 & 328R57-001 chipsets
  • very low THD
  • 1,500V minimum isolation
  • all materials approved to UL94V-0
  • excellent quality at competitive price due to high volume production
  • manufactured in ISO-9001 approved facility
   AEP1100 - Conexant Chipsets


Electrical Specifications @ 25°C

Operating Temperature: -40° to +85°C

Part
Number		 Package IC Driver Turns
Ratio
±10%
Line : IC		 LP
(µH)
±10%		 LL
(µH)
Max.		 CWW
(pF)
Max.		 DCR
(Ohms)
Max.
Line / IC		 THD
(Linearity)
Typical		 Longitudinal
Balance
Min.		 Insertion
Loss
Max.		 Frequency
Response
Max.		 Isolation
Voltage
(Vrms)
 AEP1100-T TH  328R58-001 CO/CPE
 328R57-001 CO/CPE		 2 : 1 800 10 50 1,48 / 0,77 -80dB
100kHz		 -40dB
25kHz-1MHz		 0,5dB
100kHz		 1,0dB
30kHz- 1,1MHz		 1.500
 AEP1100-S SMD

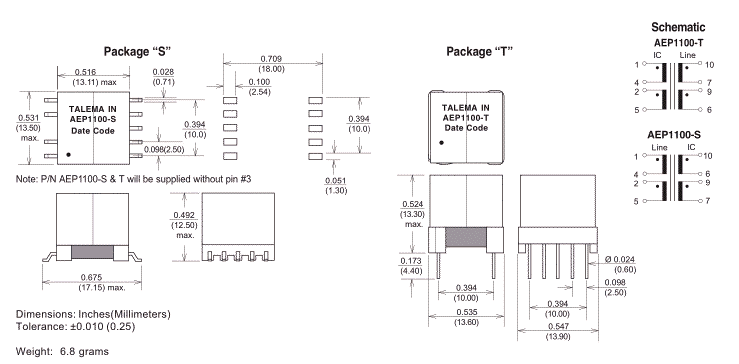

Dimensions & Schematic - Pins
