Current Transformer AC1075, 75A - Low Cost

Low Cost - High Quality - 50/60Hz Current Transformer - Primary Measuring Current 75A


Applications
  • Sensing Overload Current
  • Ground fault detection
  • Metering
  • Analog to Digital Circuits
  Current Transformer AC1075, 75A




Electrical Specifications @ 20°C ambient

Electrical Specifications
 Primary Current   75A nom., 200A max
 Turns Ratio   1000:1 nominal
 Volt per Amp Ratio at 75A
 for 100 ohm load
  0.100 V/A
 Volt per Amp Ratio at 7.5A
 for 100 ohm load
  0.0984 V/A
 DC Resistance at 20°C   24 ohms
 Dielectric Withstanding Voltage
 (Hi-pot)
  4KVrms

Mechanical Specifications
 Case   Polycarbonate
 Encapsulant   Epoxy
 Flammability   Conforms to UL94-VO
 Terminals   Pins Ø 1.0mm
 Marking   TALEMA
  Date Code (W/Y)
  AC1075
  Dot at start pin
 Approximate Weight   65.2 grams
 Tolerance   ± 0.2mm

Environmental Specifications
 Storage Temperature   -55°C to 130°C
 Insulation Resistance   100 megohms min.

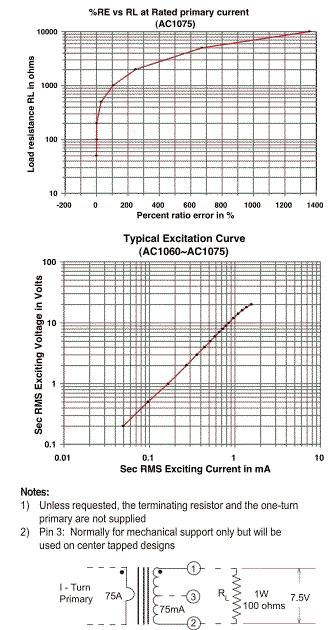

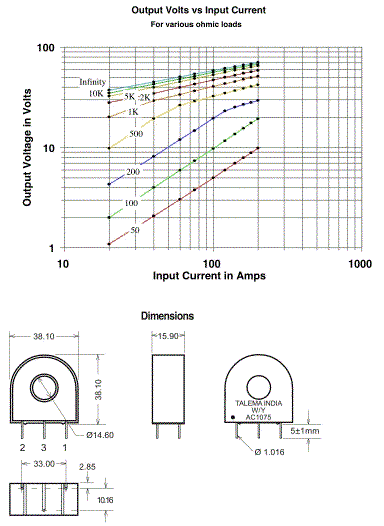

  Output Volts vs Input Current & Dimensions   %RE vs RL at Rated primary current & Excitations Curve
